Konfigurasi IP address

cd /etc/sysconfig/network-scripts
ls

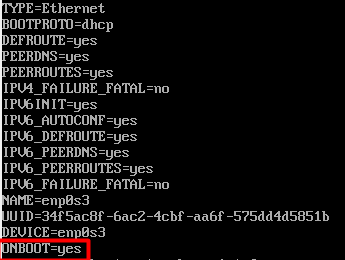

vi ifcfg-enp0s3
alt text
Tekan i untuk masuk ke mode insert , untuk keluar dari mode insert tekan ESC, ketik :wq untuk simpan dan keluar

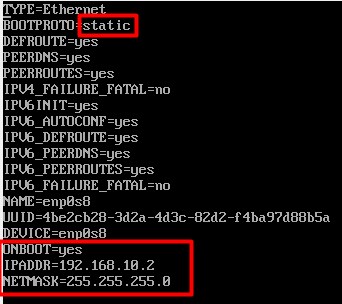

vi ifcfg-enp0s8
alt text
systemctl restart network
ip a

Konfigurasi repo

rm -f /etc/yum.repos.d/CentOS-Base.repo
vi /etc/yum.repos.d/CentOS-Vault.repo
copykan ini ke paling bawah
[base]
name=CentOS-7.9 - Base
baseurl=http://vault.centos.org/7.9.2009/os/x86_64/
gpgcheck=0
enabled=1

[updates]
name=CentOS-7.9 - Updates
baseurl=http://vault.centos.org/7.9.2009/updates/x86_64/
gpgcheck=0
enabled=1

[extras]
name=CentOS-7.9 - Extras
baseurl=http://vault.centos.org/7.9.2009/extras/x86_64/
gpgcheck=0
enabled=1

tes install nano

yum install nano

KOnfigurasi Hostname

alt text

hostnamectl set-hostname SMKMADINATULQURAN
hostnamectl
uname -a

Enkripsi Partisi

alt text

tambahkan hard disk 1 lagi, hardisk yang kita tambahkan sebelum install ternyata dipakai oleh system digabung dalam LVM, sehingga kita harus menambahkan hard disk 1 lagi. buat partisi sdc1

fdisk /dev/sdc
Welcome to fdisk (util-linux 2.23.2).

Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.

Device does not contain a recognized partition table
Building a new DOS disklabel with disk identifier 0x82f5e22f.

Command (m for help): n
Partition type:
   p   primary (0 primary, 0 extended, 4 free)
   e   extended
Select (default p): p
Partition number (1-4, default 1): enter
First sector (2048-20971519, default 2048): enter
Using default value 2048
Last sector, +sectors or +size{K,M,G} (2048-20971519, default 20971519):enter
Using default value 20971519
Partition 1 of type Linux and of size 10 GiB is set

Command (m for help): w
The partition table has been altered!

Calling ioctl() to re-read partition table.
Syncing disks.

lsblk
yum install cryptsetup -y

cryptsetup luksFormat /dev/sdc1

cryptsetup luksFormat /dev/sdc1

WARNING!
========
This will overwrite data on /dev/sdc1 irrevocably.

Are you sure? (Type uppercase yes): YES
Enter passphrase for /dev/sdc1:Skills54!
Verify passphrase:Skills54!

cryptsetup luksOpen /dev/sdc1 data_encrypt
Enter passphrase for /dev/sdc1:Skills54!

mkfs.ext4 /dev/mapper/data_encrypt
Mount data
mkdir -p /mnt/data
mount /dev/mapper/data_encrypt /mnt/data
Auto Mount setiap server menyala
nano /etc/crypttab

data_encrypt /dev/sdc1 none luks

nano /etc/fstab

/dev/mapper/data_encrypt /mnt/data ext4 defaults 0 0

Hardening SSH

alt text

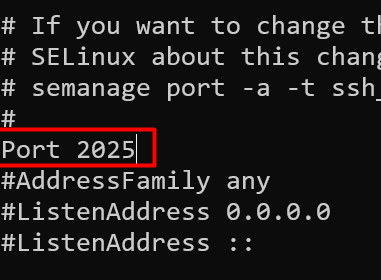

SSH dapat diakses di port 2025

nano /etc/ssh/sshd_config
alt text

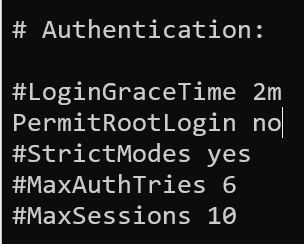

Tidak mengizinkan login Root User

nano /etc/ssh/sshd_config
alt text

Hanya mengizinkan autentikasi menggunakan Public Key Authentication pada user ‘lks’

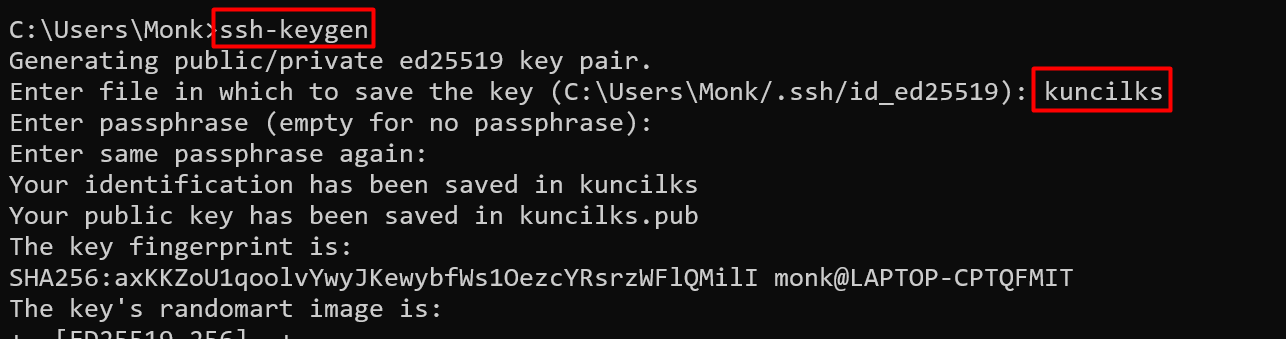

Buat pasangan private key dan public key di windows alt text
Copy kan kuncilks.pub ke user lks di server

C:\Users\Monk>scp kuncilks.pub lks@192.168.10.2:/home/lks
lks@192.168.10.2's password:Skills54!
kuncilks.pub                                                  100%  103    50.3KB/s   00:00
copy isi dari kuncilks.pub di server ke authorized keys
[root@smkmadinatulquran ~]# cd /home/lks
[root@smkmadinatulquran lks]# ls
kuncilks.pub
[root@smkmadinatulquran lks]# mkdir .ssh
[root@smkmadinatulquran lks]# cat kuncilks.pub >> .ssh/authorized_keys
Tes SSH dari windows menggunakan ssh key
C:\Users\Monk>ssh -i kuncilks lks@192.168.10.2
Last failed login: Wed Apr 15 23:16:50 EDT 2026 from 192.168.10.12 on ssh:notty
There was 1 failed login attempt since the last successful login.
Last login: Wed Apr 15 22:44:06 2026 from 192.168.10.12
[lks@smkmadinatulquran ~]$
Konfigurasi sshd_config agar user lks hanya bisa menggunakan ssh_key untuk ssh dan tidak bisa menggunakan password
nano /etc/ssh/sshd_config
tambahkan baris berikut di paling bawah
Match User lks
        PasswordAuthentication no
        PubkeyAuthentication yes

systemctl restart sshd
tes ssh biasa dari windows
C:\Users\Monk>ssh lks@192.168.10.2
ssh: connect to host 192.168.10.2 port 22: Connection refused
Tes SSH menggunakan key dari windows
