Ansible Dasar (lagi) PART I

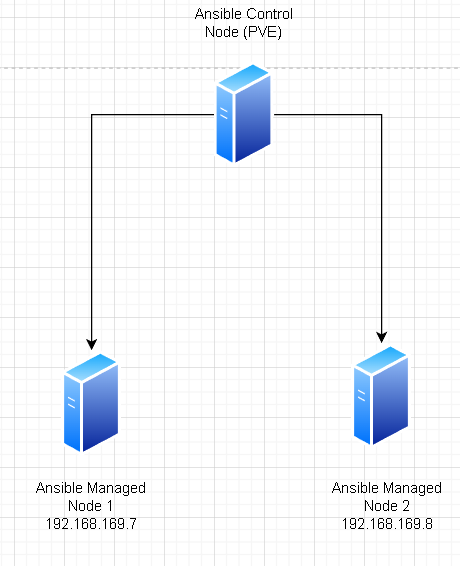

Topologi

Pada pembelajaran ini kita akan menggunakan topologi berikut : alt text
Pada Ansible Managed Node1 kita akan melakukan Installasi Node JS dan melakukan deploy aplikasi dengan link github berikut https://github.com/fazt/crud-nodejs-mysql.git secara manual , sedangkan pada Ansible Managed Node2 kita akan melakukan deploy aplikasi yang sama melalui Ansible

Warning

Buat 2 Container baru, sesuaikan IP Address sesuai dengan topologi, container container sebelumnya dihapus terlebih dahulu sebelum memulai praktikum ini.

Passwordless SSH Managed Node

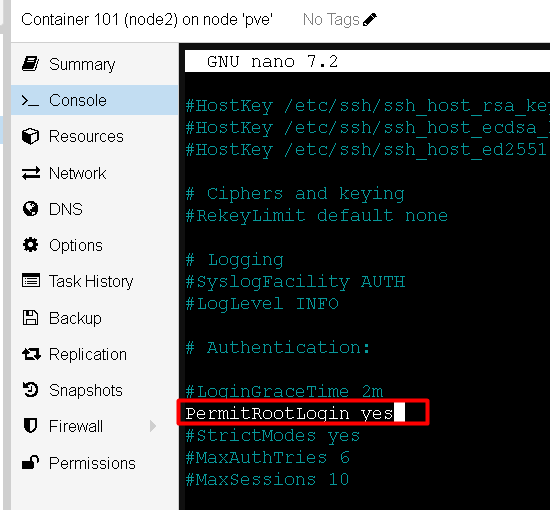

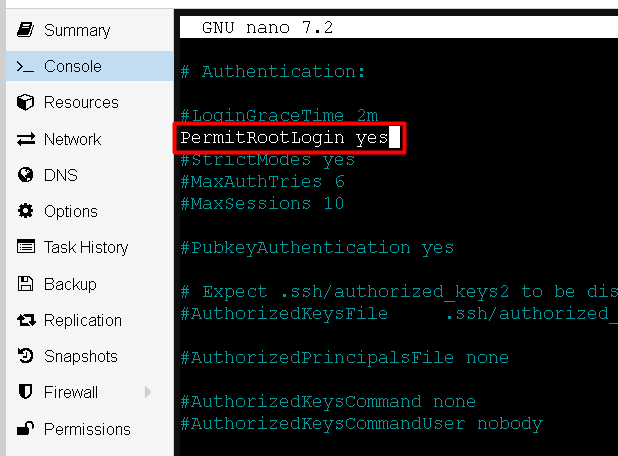

Aktifkan PermitRootLogin Managed Node

alt text
alt text
alt text
alt text
alt text
alt text
alt text

copy public key dari control node ke managed node

root@pve:~# ssh-copy-id 192.168.169.7
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_rsa.pub"
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@192.168.169.7's password:

Number of key(s) added: 1

Now try logging into the machine, with:   "ssh '192.168.169.7'"
and check to make sure that only the key(s) you wanted were added.

root@pve:~# ssh-copy-id 192.168.169.8
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_rsa.pub"
The authenticity of host '192.168.169.8 (192.168.169.8)' can't be established.
ED25519 key fingerprint is SHA256:eIZIA2z88iH9jhYkjyE5gKsfhGMJ659WJxFhHAiVU70.
This host key is known by the following other names/addresses:
    ~/.ssh/known_hosts:7: [hashed name]
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@192.168.169.8's password:

Number of key(s) added: 1

Now try logging into the machine, with:   "ssh '192.168.169.8'"
and check to make sure that only the key(s) you wanted were added.

SSH ke managed Node1 dari control node

root@pve:~# ssh root@192.168.169.7
Linux node1 6.8.12-9-pve #1 SMP PREEMPT_DYNAMIC PMX 6.8.12-9 (2025-03-16T19:18Z) x86_64

The programs included with the Debian GNU/Linux system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.

Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent
permitted by applicable law.
Last login: Thu Feb  5 01:08:35 2026
root@node1:~#

Installasi NodeJS

Update Package

root@node1:~# apt-get update

Download dan Install NodeJS

root@node1:~# apt install curl

root@node1:~# curl -fsSL https://deb.nodesource.com/setup_lts.x | bash -

root@node1:~# apt install nodejs -y

Install git dan clone Repo

root@node1:~# apt install git -y

root@node1:~# git clone https://github.com/fazt/crud-nodejs-mysql.git

Install MysQL

root@node1:~# apt install mariadb-server -y

Import Database

Cek apakah ada file sql di app folder

root@node1:~# ls
crud-nodejs-mysql
root@node1:~# cd crud-nodejs-mysql/
root@node1:~/crud-nodejs-mysql# ls
README.md  database  package.json  pnpm-lock.yaml  src
root@node1:~/crud-nodejs-mysql# cd database
root@node1:~/crud-nodejs-mysql/database# ls
db.sql

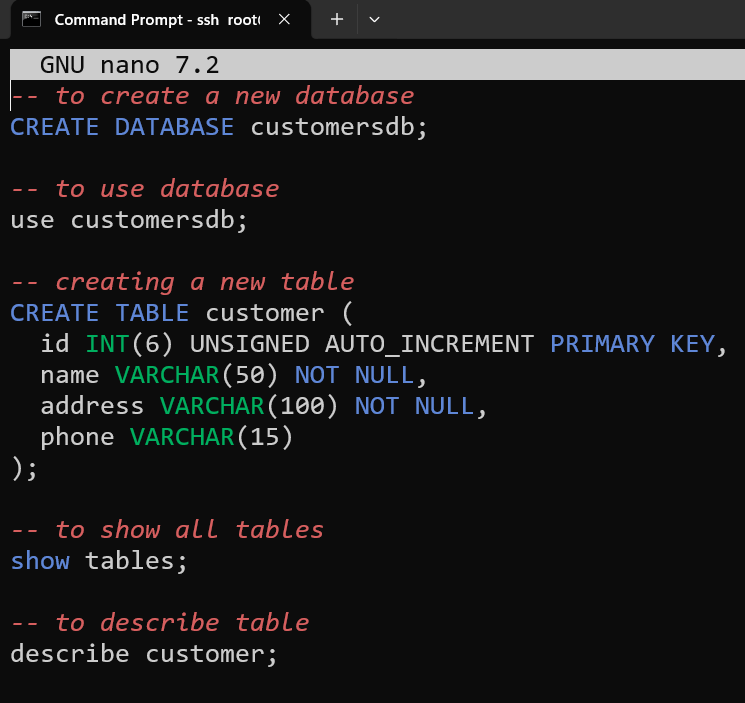

root@node1:~/crud-nodejs-mysql/database# nano db.sql
alt text

Note

File db.sql secara otomatis akan membuat database dengan nama customersdb dan table customer didalamnya

Import Database

root@node1:~/crud-nodejs-mysql/database# mysql -u root < ~/crud-nodejs-mysql/database/db.sql
Tables_in_customersdb
customer
Field   Type    Null    Key     Default Extra
id      int(6) unsigned NO      PRI     NULL    auto_increment
name    varchar(50)     NO              NULL
address varchar(100)    NO              NULL
phone   varchar(15)     YES             NULL

Koneksikan Database dengan App

Membuat user mysql baru

root@node1:~/crud-nodejs-mysql/src# mysql -u root

MariaDB [(none)]> CREATE USER 'crud'@'localhost' IDENTIFIED BY '1234';

Note

Perintah diatas akan membuat user bernama crud yang hanya dapat login dari localhost dan memiliki password 1234

Memberikan kewenangan database customersdb ke user crud

MariaDB [(none)]> GRANT ALL PRIVILEGES ON customersdb.* TO 'crud'@'localhost';
Query OK, 0 rows affected (0.005 sec)

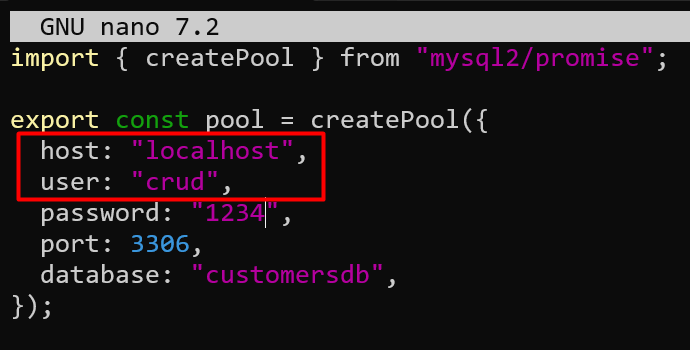

Mengedit konfigurasi database di nodeJS app

MariaDB [(none)]> exit

root@node1:~/crud-nodejs-mysql/src# cd
root@node1:~# cd crud-nodejs-mysql/
root@node1:~/crud-nodejs-mysql# ls
README.md  database  package.json  pnpm-lock.yaml  src
root@node1:~/crud-nodejs-mysql# cd src/
root@node1:~/crud-nodejs-mysql/src# ls
app.js  config.js  controllers  db.js  index.js  public  routes  views
root@node1:~/crud-nodejs-mysql/src# nano db.js
alt text

Menjalankan App

Install dependency NodeJS App

root@node1:~/crud-nodejs-mysql/src# cd
root@node1:~# cd crud-nodejs-mysql/

root@node1:~/crud-nodejs-mysql# npm install

added 93 packages, and audited 94 packages in 35s

16 packages are looking for funding
  run `npm fund` for details

1 critical severity vulnerability

To address all issues (including breaking changes), run:
  npm audit fix --force

Run `npm audit` for details.
npm notice
npm notice New minor version of npm available! 11.6.2 -> 11.9.0
npm notice Changelog: https://github.com/npm/cli/releases/tag/v11.9.0
npm notice To update run: npm install -g npm@11.9.0
npm notice

root@node1:~/crud-nodejs-mysql# npm install -g pm2

Note

Dengan PM2 kita menjalankan nodeJS app di background

Menjalankan App dengan PM2

root@node1:~/crud-nodejs-mysql# pm2 start npm --name "crudgaming" -- start

root@node1:~/crud-nodejs-mysql# pm2 status
┌────┬────────────────────┬──────────┬──────┬───────────┬──────────┬──────────┐
│ id │ name               │ mode     │ ↺    │ status    │ cpu      │ memory   │
├────┼────────────────────┼──────────┼──────┼───────────┼──────────┼──────────┤
│ 0  │ crudgaming         │ fork     │ 0    │ online    │ 0%       │ 67.6mb   │
└────┴────────────────────┴──────────┴──────┴───────────┴──────────┴──────────┘

Simpan konfigurasi PM2 agar otomatis start setelah reboot

root@node1:~/crud-nodejs-mysql# pm2 startup systemd
root@node1:~/crud-nodejs-mysql# pm2 save

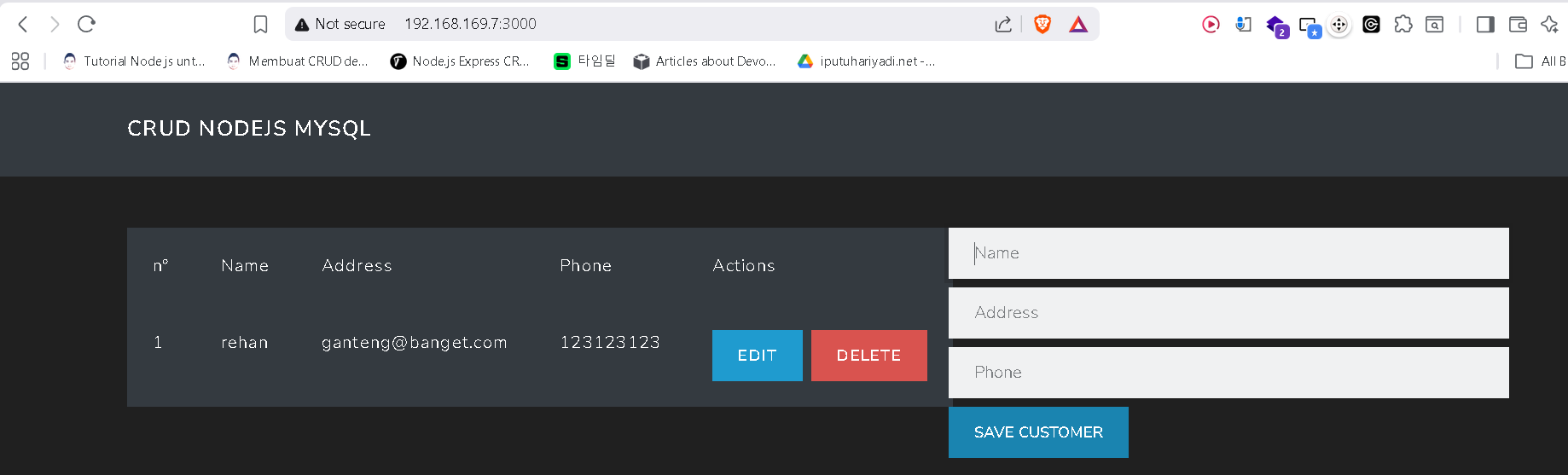

Tes akses http://192.168.169.7:3000

alt text

The end of Part 1
