installasi Jenkins

Membuat bridge network

docker network create jenkins

Membuat file penyimpanan file Jenkins Docker

mkdir jenkins
cd jenkins

Membuat dockerfile untuk Jenkins Docker

nano Dockerfile

FROM jenkins/jenkins:lts-jdk21

USER root
RUN apt-get update && apt-get install -y \
    ca-certificates curl gnupg lsb-release \
    && mkdir -p /etc/apt/keyrings \
    && curl -fsSL https://download.docker.com/linux/debian/gpg -o /etc/apt/keyrings/docker.asc \
    && echo "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.asc] \
       https://download.docker.com/linux/debian $(lsb_release -cs) stable" \
       > /etc/apt/sources.list.d/docker.list \
    && apt-get update && apt-get install -y docker-ce-cli \
    && apt-get clean && rm -rf /var/lib/apt/lists/*

USER jenkins
RUN jenkins-plugin-cli --plugins "blueocean docker-workflow"

buat docker compose

nano compose.yaml

version: '3.9'

services:
  jenkins:
    build: .
    container_name: jenkins
    restart: unless-stopped
    ports:
      - "8080:8080"
      - "50000:50000"
    volumes:
      - jenkins_home:/var/jenkins_home
      - /var/run/docker.sock:/var/run/docker.sock
    environment:
      - JAVA_OPTS=-Djava.awt.headless=true

volumes:
  jenkins_home:

Jalankan docker compose

docker compose up -d --build

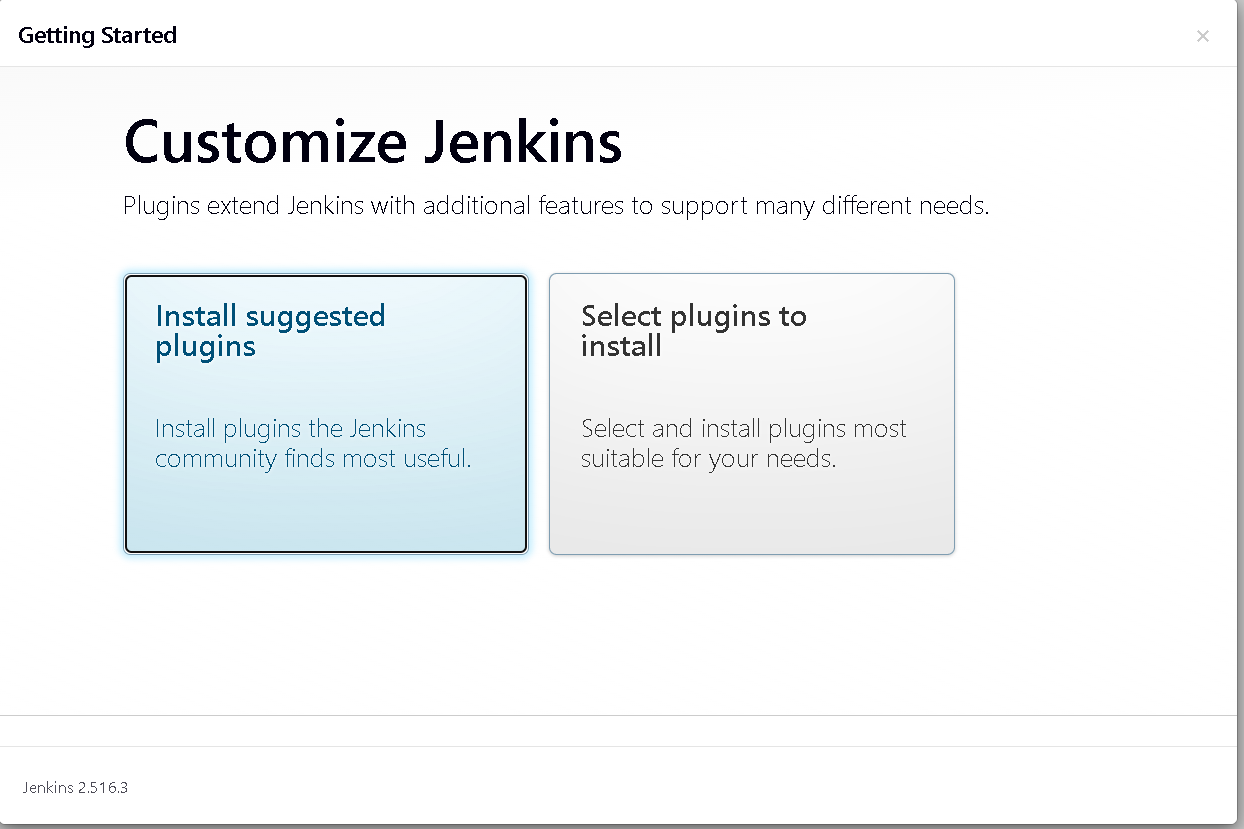

Jalankan jenkins di browser

http://your-server-ip:8080

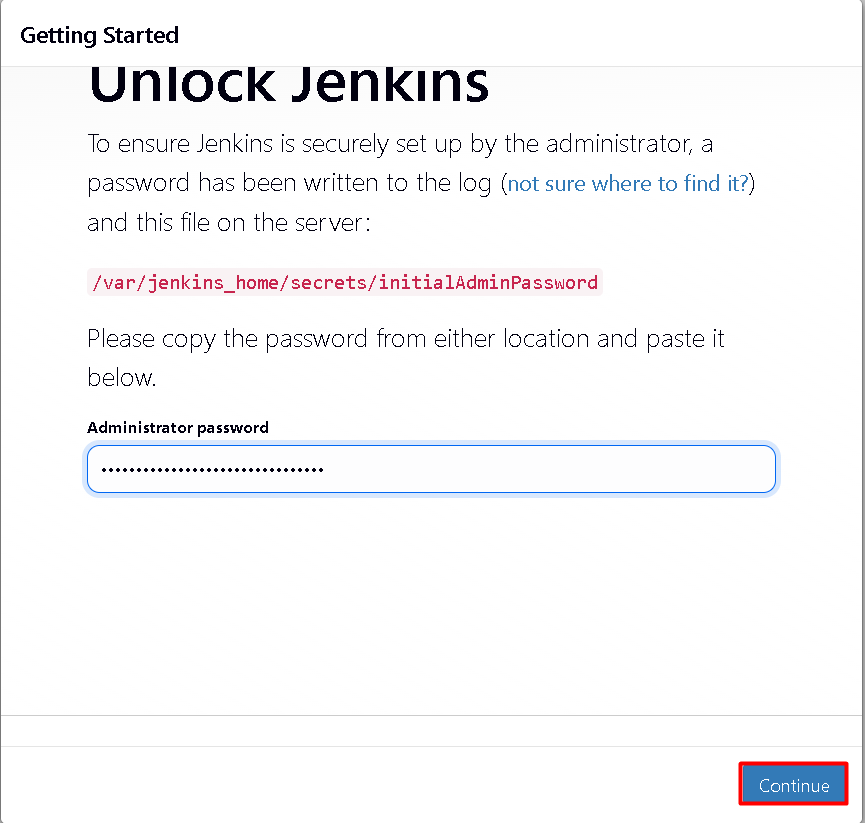

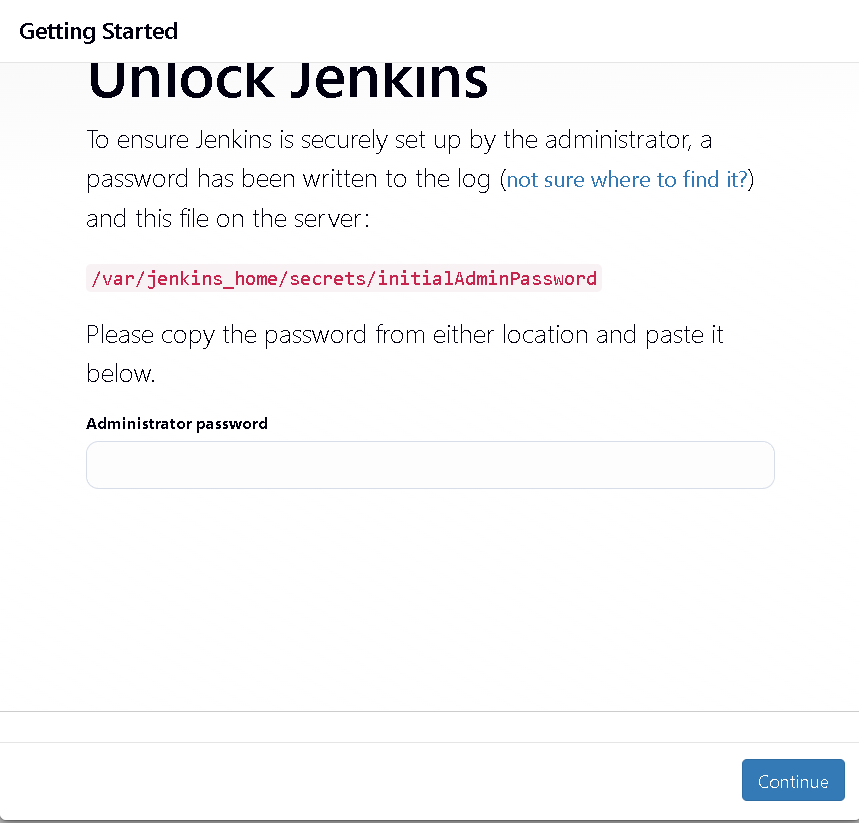

Masukkan administrator password

copy dari server

docker exec -it jenkins cat /var/jenkins_home/secrets/initialAdminPassword

Fork Repo

https://github.com/rat9615/simple-nodejs-app

Membuat Folder baru kemudian clone didalam folder tersebut

mkdir simple-app
cd simple-app
git clone repo-anda-yang-sudah-hasil-fork.git

Membuat Registry Docker Image Local

docker run -d \
  -p 5000:5000 \
  --name registry \
  --restart=always \
  registry:2

Mendaftarkan ip address registry local agar jenkins dapat mengaksesnya

nano /etc/docker/daemon.json

{
  "insecure-registries": ["192.168.10.26:5000"]
}

 systemctl daemon-reload
 systemctl restart docker

membuat docker file di masing masing service

cd ~/simple-app
nano simple-nodejs-app/Dockerfile

FROM node:22

WORKDIR /app

COPY package*.json ./
RUN npm install

COPY . .

EXPOSE 3000

CMD ["npm", "start"]

Membuat file Pipeline Jenkins

nano simple-nodejs-app/Jenkinsfile

pipeline {
    agent any

    environment {
        REGISTRY = "192.168.10.26:5000"
        IMAGE_NAME = "simple-app"
        VERSION = "v01"
    }

    stages {

        stage('Checkout') {
            steps {
                echo "📦 Cloning repository..."
                git branch: 'master', url: 'https://github.com/rehanarrow26/simple-nodejs-app.git'
            }
        }

        stage('Build Docker Image') {
            steps {
                script {
                    echo "🏗️ Building Docker image..."
                    sh """
                        docker build -t ${REGISTRY}/${IMAGE_NAME}:${VERSION} \
                                     -t ${REGISTRY}/${IMAGE_NAME}:latest .
                    """
                }
            }
        }

        stage('Push to Local Registry') {
            steps {
                script {
                    echo "🚢 Pushing image to local registry..."
                    sh """
                        docker push ${REGISTRY}/${IMAGE_NAME}:${VERSION}
                        docker push ${REGISTRY}/${IMAGE_NAME}:latest
                    """
                }
            }
        }

        stage('Deploy to Web Server') {
    steps {
        echo "🚀 Deploying to 192.168.10.26 (port 26) using username & password..."
        withCredentials([usernamePassword(credentialsId: 'ssh_ke_web', usernameVariable: 'SSH_USER', passwordVariable: 'SSH_PASS')]) {
            sh '''
                sshpass -p "$SSH_PASS" ssh -o StrictHostKeyChecking=no -p 26 $SSH_USER@192.168.10.26 "
                    cd /root/simple-app && \
                    docker compose pull && \
                    docker compose up -d
                "
            '''
        }
    }
}
    }

    post {
        success {
            echo "✅ Build, push, and deploy completed successfully!"
        }
        failure {
            echo "❌ Build, push, or deploy failed. Please check logs."
        }
    }
}

commit perubahan dan push ke github

 cd simple-nodejs-app/
git add .
git commit -m "jenkinsfile and dockerfile added"
git push
Username for 'https://github.com': arrow2601
Password for 'https://arrow2601@github.com':

Membuat Docker Compose untuk menjalankan app

cd ~/simple-app
nano docker-compose.yml

version: "3.9"

services:
  app:
    image: localhost:5000/simple-app:latest
    pull_policy: always
    container_name: node_app
    ports:
      - "3000:3000"
    restart: unless-stopped
    environment:
      - NODE_ENV=production

setting SSH agar Jenkins bisa SSH ke server production menggunakan user root

nano /etc/ssh/sshd_config

cari Permitlogin ubah jadi Permitlogin Yes

service sshd restart

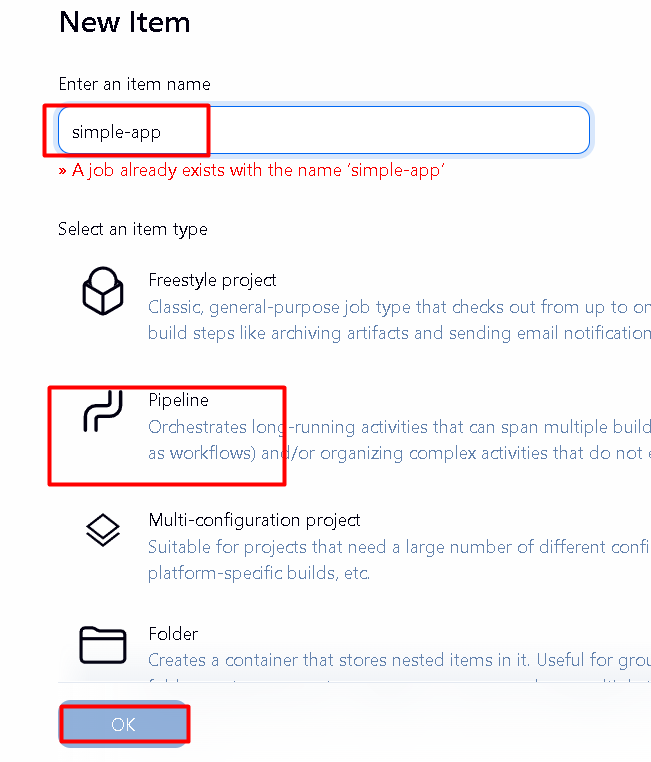

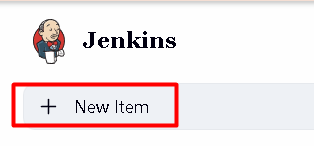

Membuat pipeline baru di Jenkins

akses jenkins via webrowser

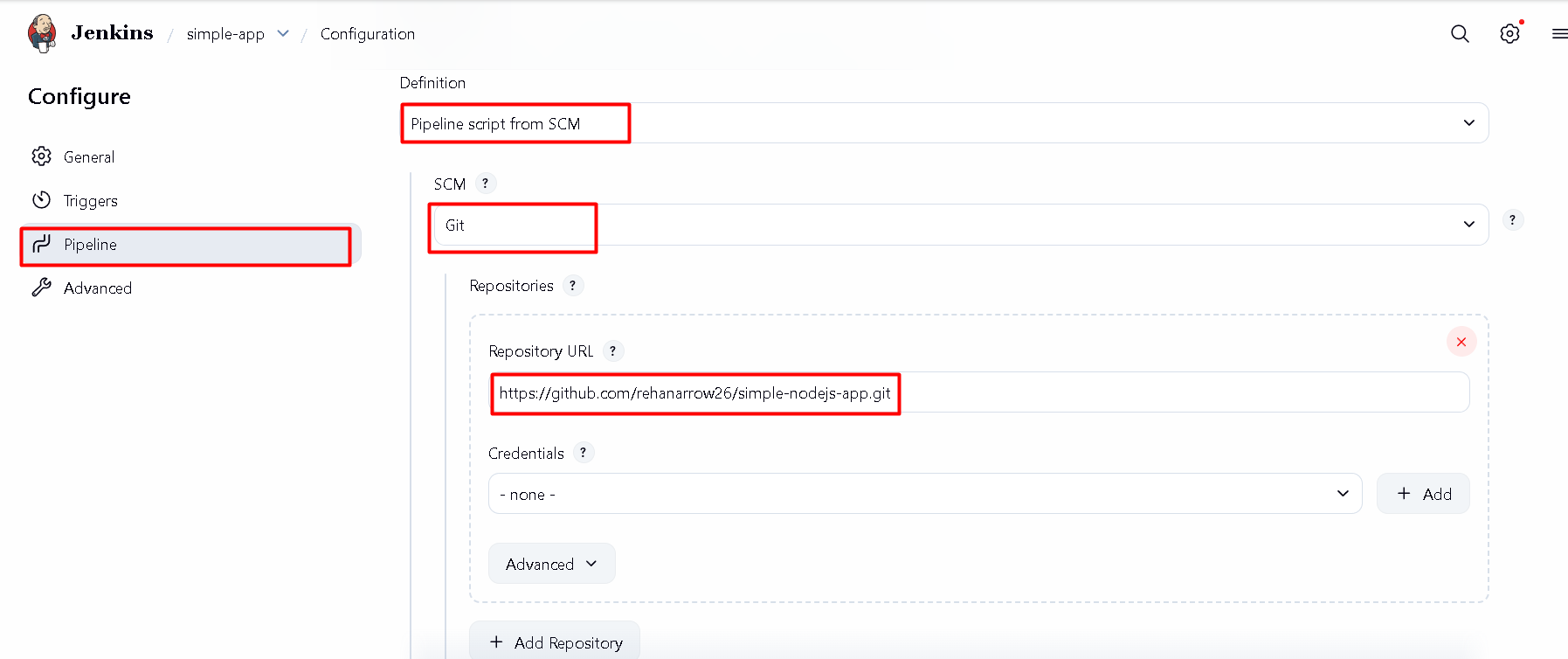

arahkan jenkins ke github yang telah kita fork

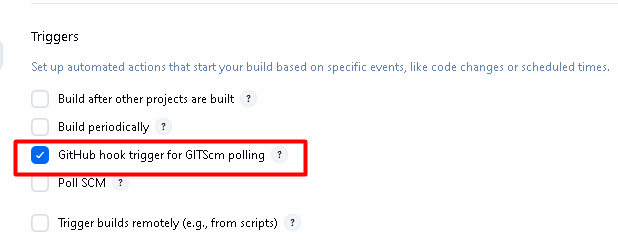

Pada bagian Triggers centang Github Hook

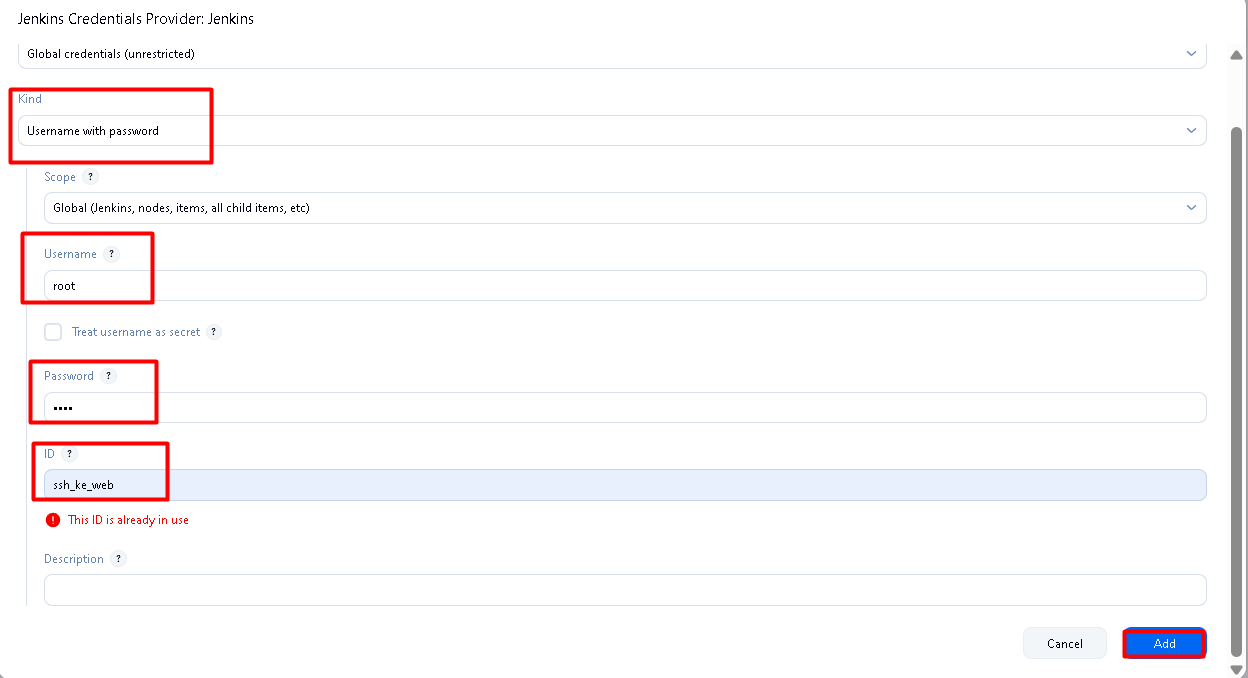

Tambahkan credential agar Jenkins bisa ssh ke server kita

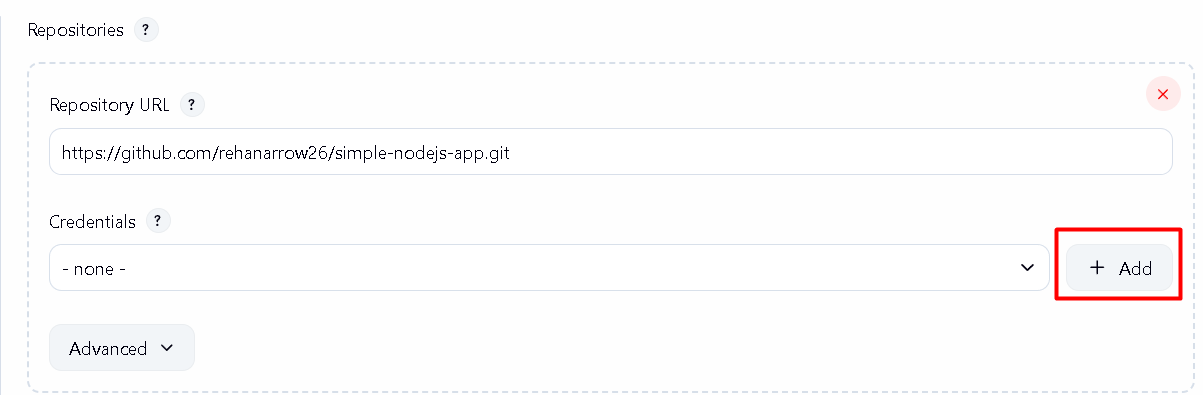

Dibawah pilihan repo klik + Add pada kolom credential

Masukkan username dan password Root server production

Setelah itu pada credential pilih root/*******

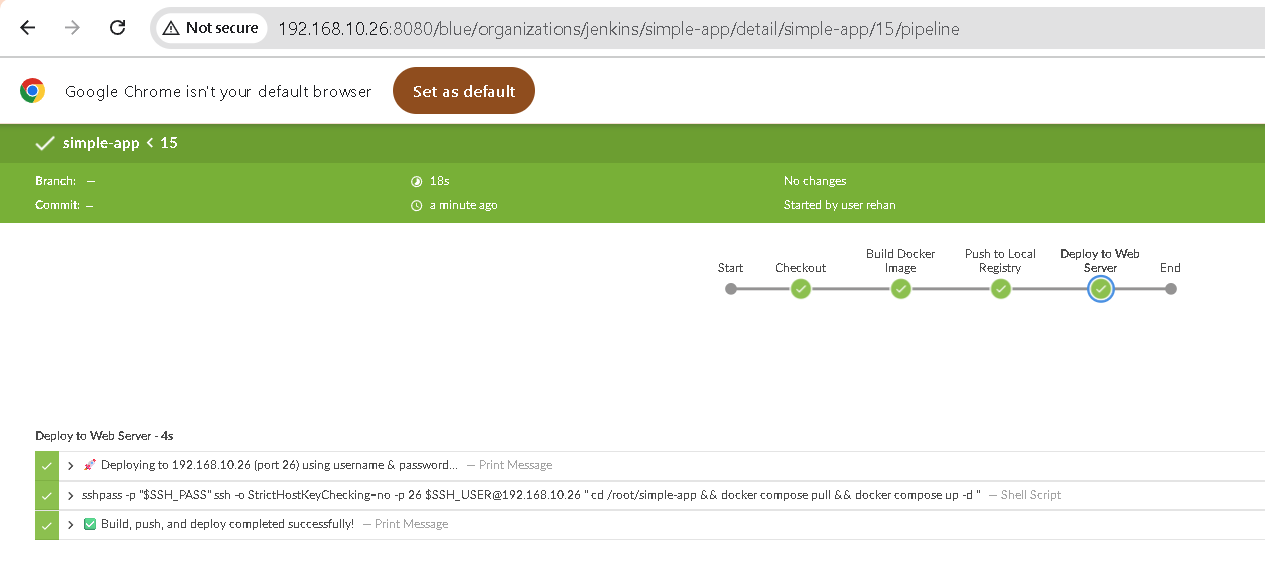

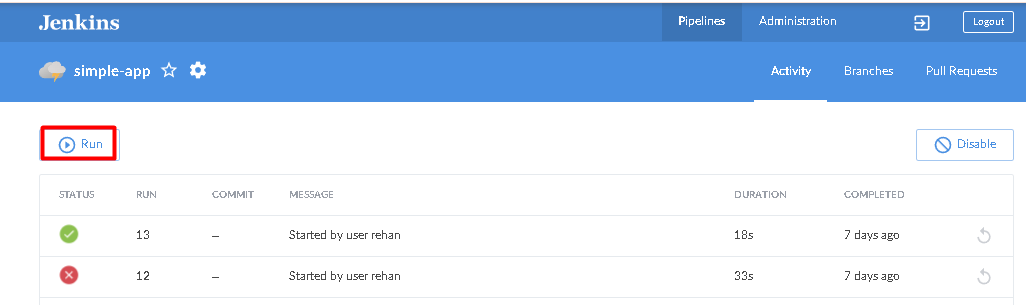

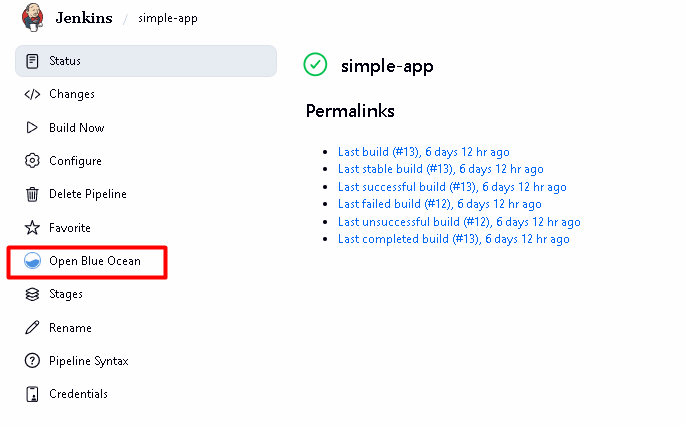

Tes Running Pipeline

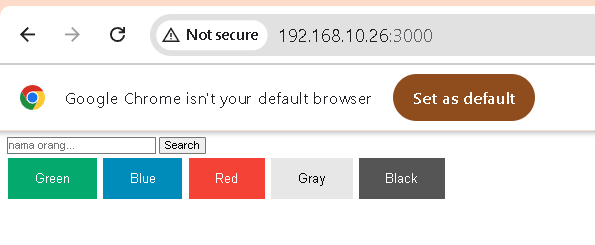

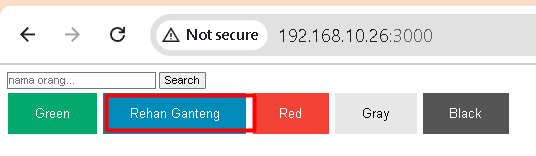

Tes App di Browser

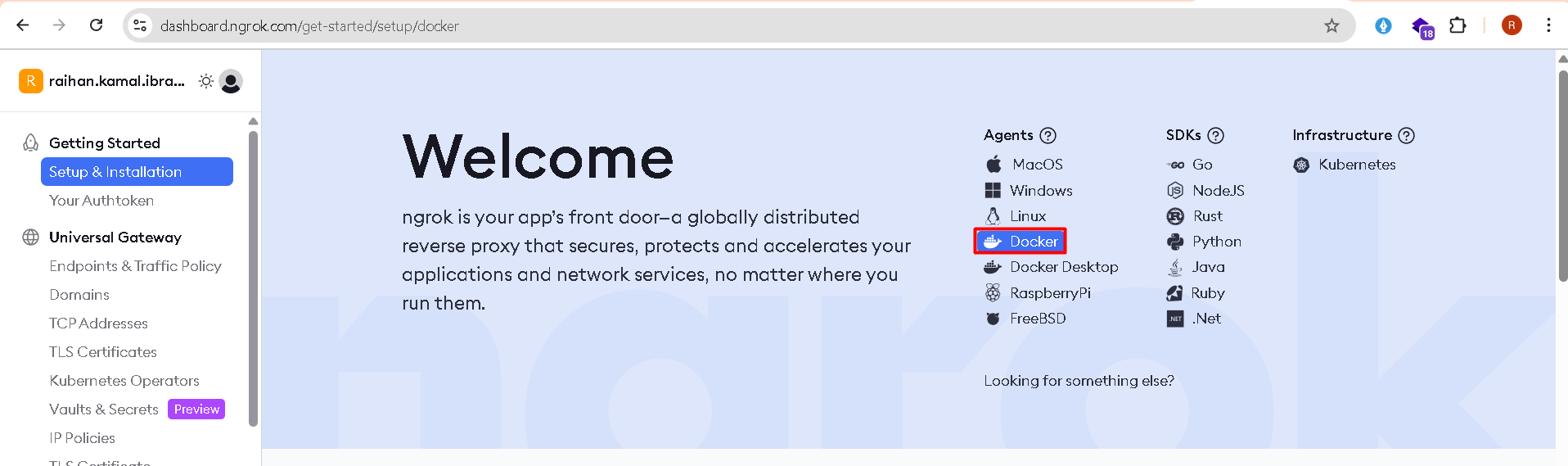

Install Ngrok

Login kemudian

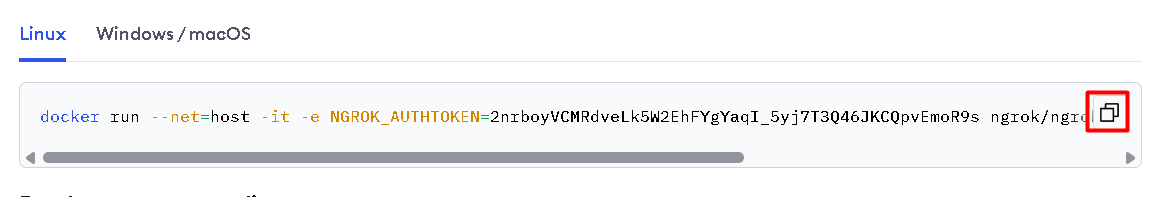

copy dan paste ke server production

tapi edit portnya ke port Jenkins

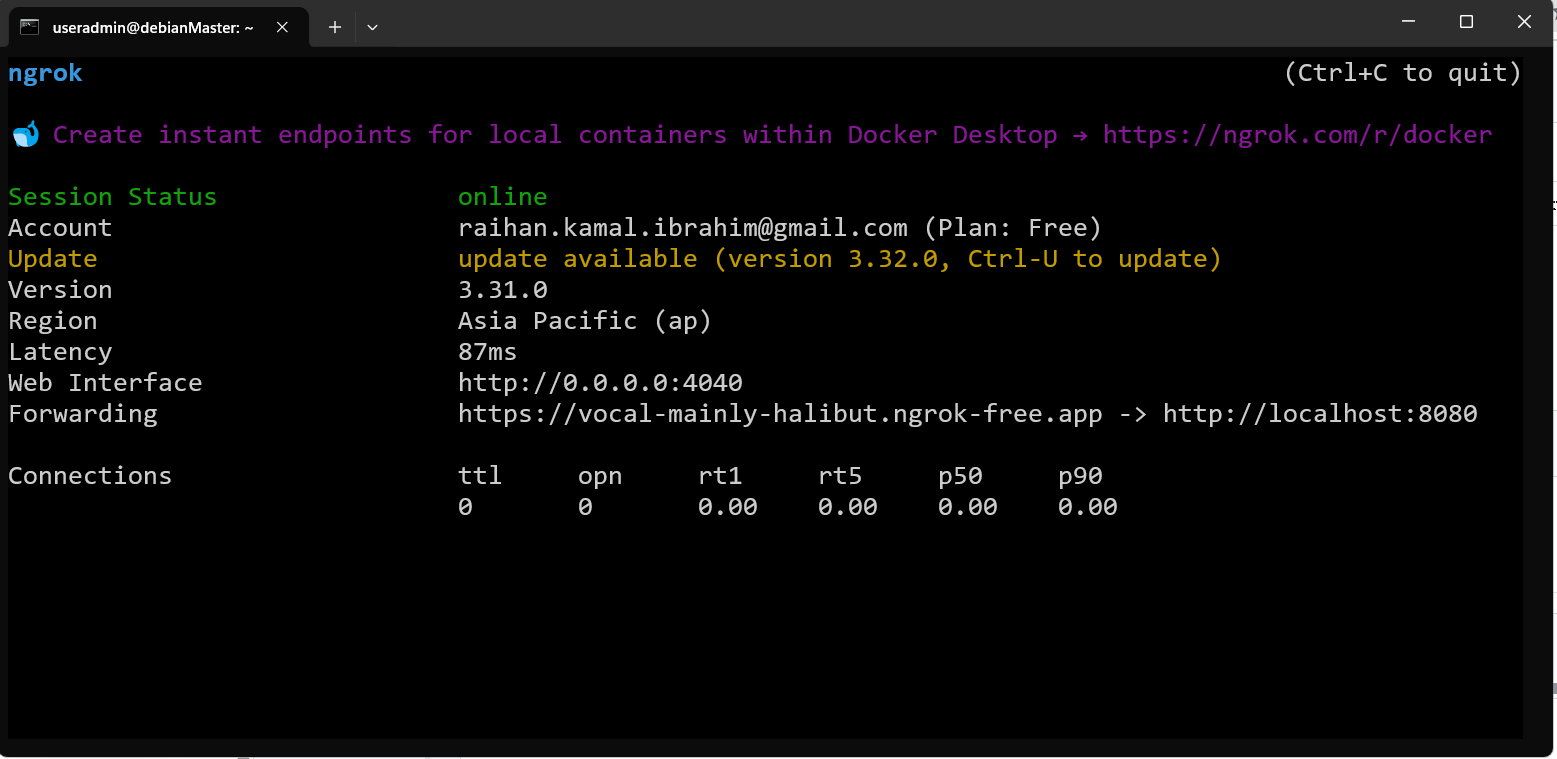

docker run --net=host -it -e NGROK_AUTHTOKEN=2nrboyVCMRdveLk5W2EhFYgYaqI_5yj7T3Q46JKCQpvEmoR9s ngrok/ngrok:latest http --url=vocal-mainly-halibut.ngrok-free.app 8080

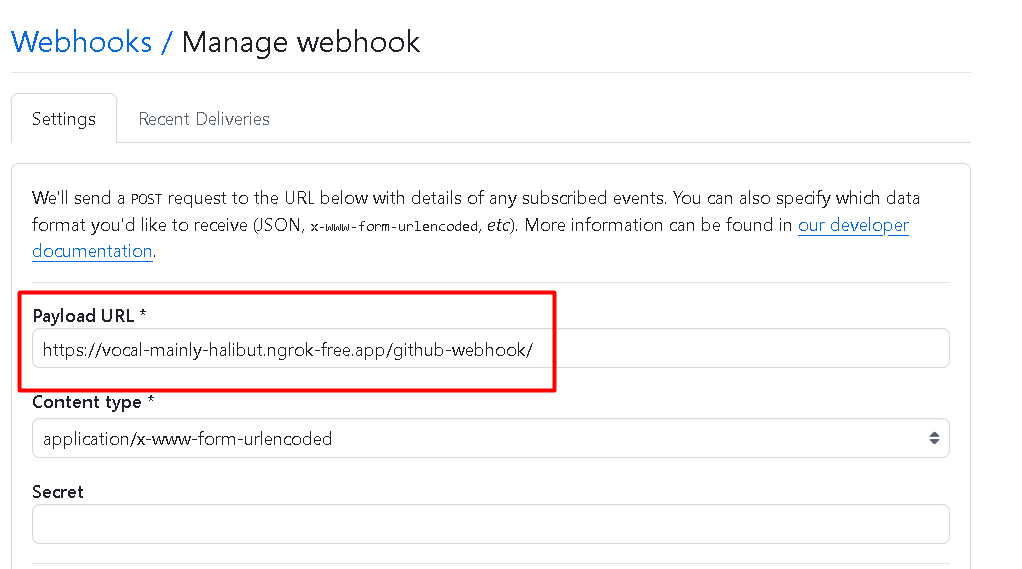

Memasukkan url ngrok ke Webhook Github

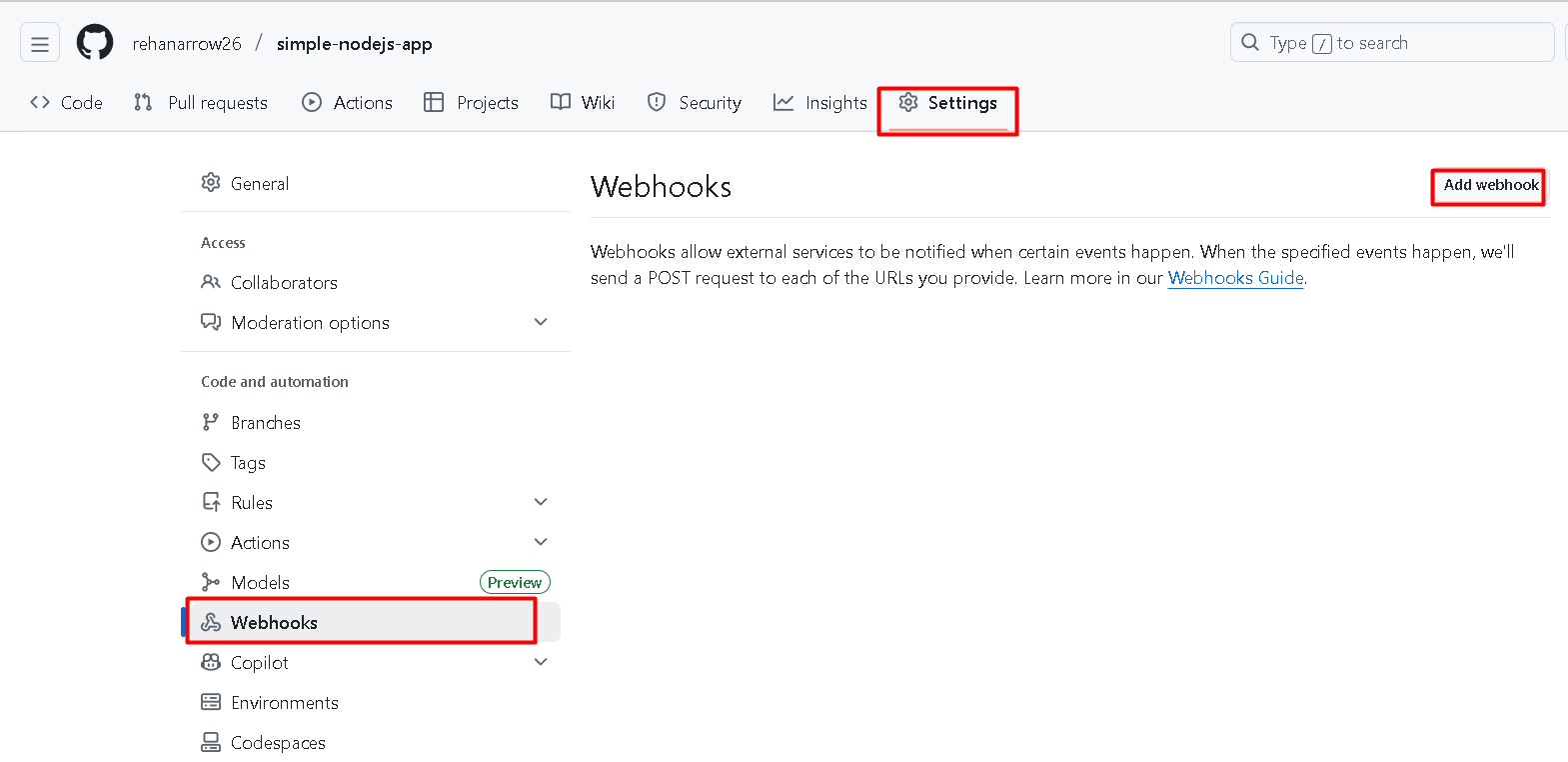

Masuk ke setting dari repo kemudian add webhook

Masukkan url dari ngrok

Testing Github Trigger

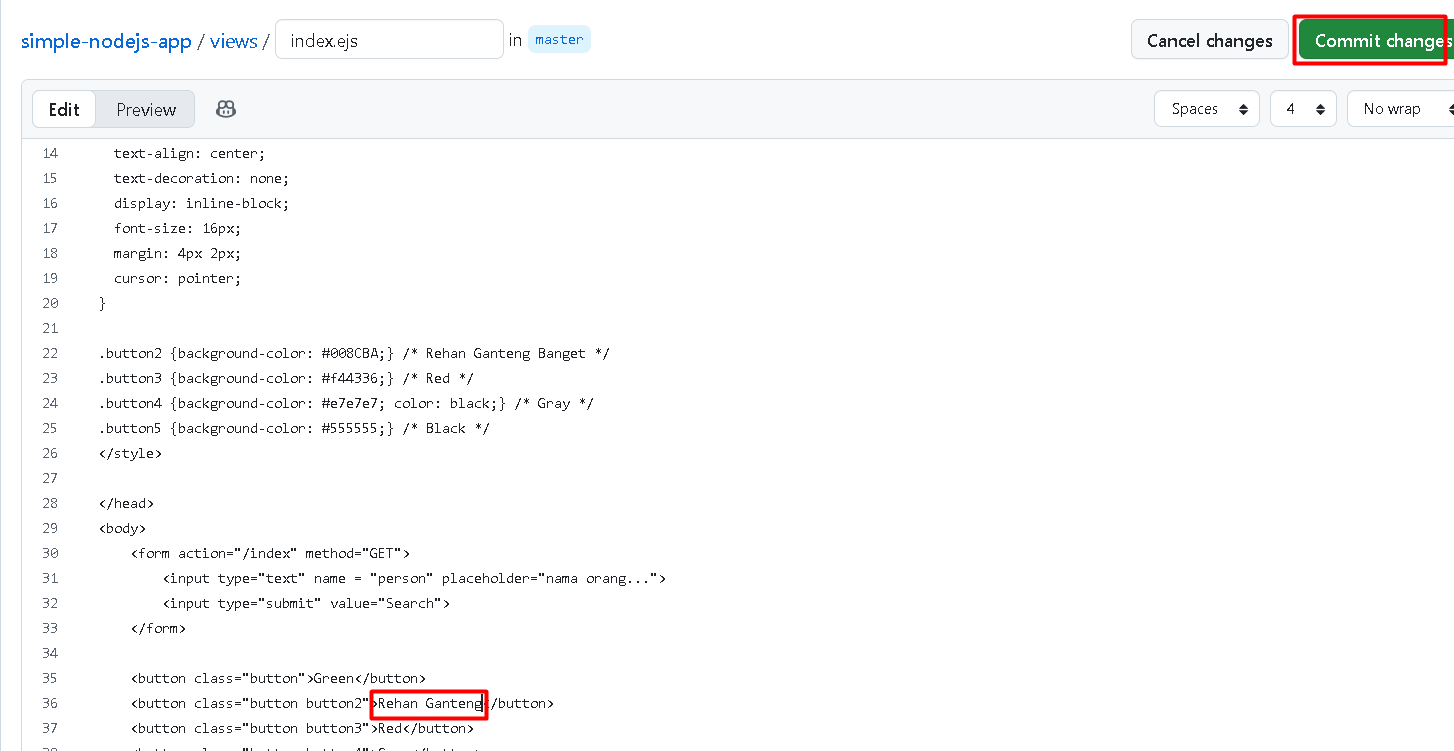

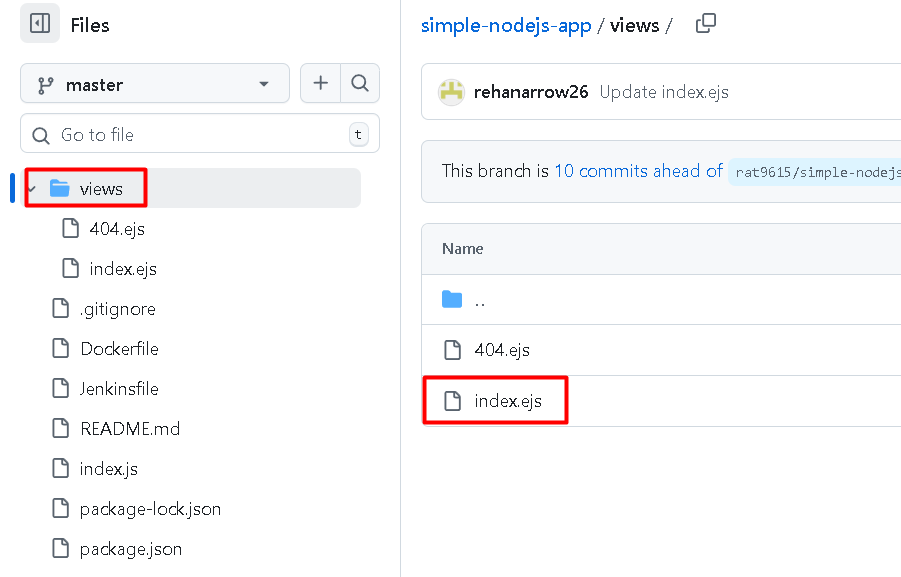

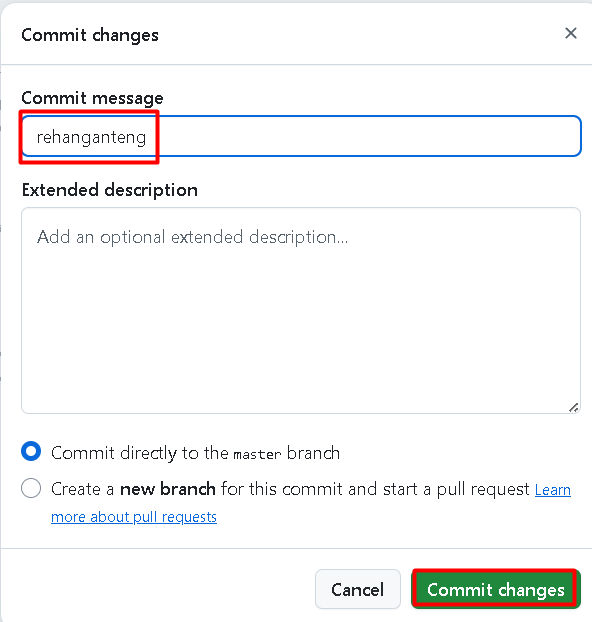

Edit file di repo views/index.ejs

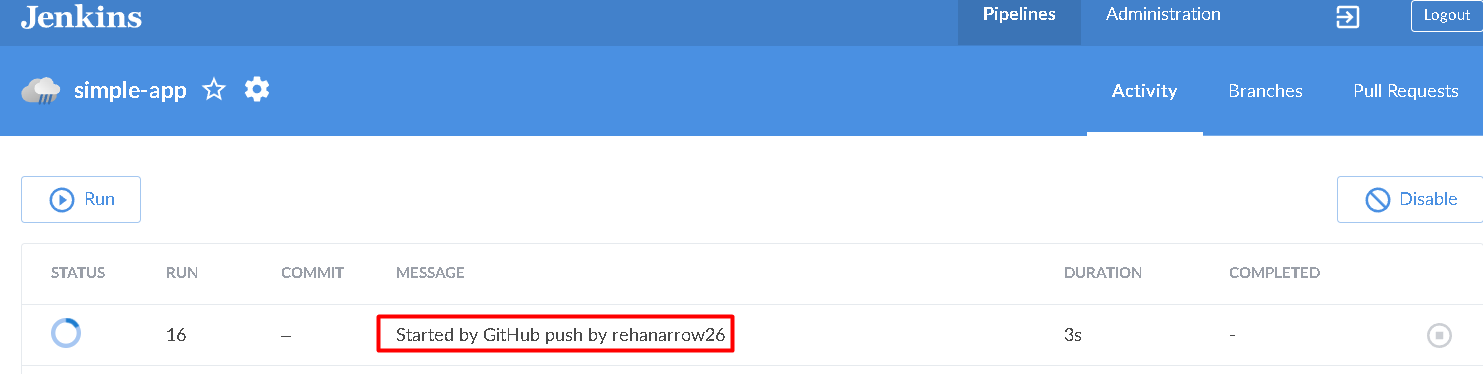

Jika github webhook berjalan seharusnya di Jenkins akan menjalankan Job dengan nama commit message yang kita buat tadi

Terlihat ketika code di Github berubah, Jenkins otomatis menjalankan JOb, dan melakukan deploy secara otomatis ke server production.
