Umrah App

Clone repo

root@debianMaster:~# mkdir rihlatul-app
root@debianMaster:~# cd rihlatul-app
root@debianMaster:~/rihlatul-app# git clone https://github.com/SMKMADINATULQURAN-PROJECT-2023/FE-Kelompok-Umroh.git
root@debianMaster:~/rihlatul-app# git clone https://github.com/SMKMADINATULQURAN-PROJECT-2023/BE-Kelompok-Umroh.git

Membuat file .envproduction untuk FE

root@debianMaster:~/rihlatul-app# nano FE-Kelompok-Umroh/.env.production

# SECRET KEY
NEXTAUTH_SECRET=dofbhkgjnosjgdklnsmgojdfkhglnsgnvfvsdkn

# REDIRECT URL (WEB'S URL)
NEXTAUTH_URL=http://192.168.10.1:5555

# URL API

Membuat file .envBE untuk BE

root@debianMaster:~/rihlatul-app# nano .envBE

NODE_ENV = development
PORT = 3306
PORT_API = 5002
BASE_CLIENT_URL = http://192.168.10.1:5555

DB_USERNAME_DEV = 'umroh48'
DB_PASSWORD_DEV = '1234'
DB_NAME_DEV = 'smkm1712_umroh_DB'
DB_HOST_DEV = '202.83.120.91'
DB_DIALECT_DEV = mysql

DB_USERNAME = 'root'
DB_PASSWORD = ''
DB_NAME = 'umrah'
DB_HOST = '127.0.0.1'
DB_DIALECT = mysql

DB_USERNAME_TEST = 'root'
DB_PASSWORD_TEST = 'secret'
DB_NAME_TEST = 'u8767111_rihlatul'
DB_HOST_TEST = '192.168.10.1'
DB_DIALECT_TEST = mysql

MAIL_HOST = mail.smkmadinatulquran.sch.id
MAIL_PORT = 465
MAIL_USERNAME = latihan-email@smkmadinatulquran.sch.id
MAIL_PASSWORD = IHSAN$%09
MAIL_CLIENT_URL = http://localhost:1214/

JWT_SECRET = ghfjdkjnojsighijknlzsofjihgudhkggnsghsjmjfshogdfgn
ACCESS_TOKEN_SECRET = 5Np9LmQaJxTb2rY3sC8K6z7W1GvF0U4IhDqXoAeP
REFRESH_TOKEN_SECRET = 4Fh9YkTl8QjR2sA6gP5nDm7WqV1zX3cB0
JWT_EXPIRED = 3600

CLOUD_NAME = "dllw0z7bh"
API_KEY = "576412332728459"
API_SECRET = "IAuPjdvPxCFUcjmDjOZ4yd29leU"

Membuat Dockerfile dan .dockerignore di FE

root@debianMaster:~/rihlatul-app# nano FE-Kelompok-Umroh/Dockerfile

FROM node:18

WORKDIR /app

COPY package*.json ./
RUN npm install

COPY . .

RUN npm run build

CMD npm run start

root@debianMaster:~/rihlatul-app# nano FE-Kelompok-Umroh/.dockerignore

Dockerfile
.dockerignore
node_modules
npm-debug.log
dist

Membuat Dockerfile dan .dockerignore di BE

root@debianMaster:~/rihlatul-app# nano BE-Kelompok-Umroh/Dockerfile

FROM node:18

WORKDIR /app

COPY package*.json ./
RUN npm install

COPY . .

RUN npm run build

CMD node dist/main --host

root@debianMaster:~/rihlatul-app# nano BE-Kelompok-Umroh/.dockerignore

Dockerfile
.dockerignore
node_modules
npm-debug.log
dist

Membuat file dump untuk BE

arena BE butuh database dengan nama u87.... sebagaimana yang ada di file env, maka ketika kita membuat docker mysql, otomatis akan membuatkan database tersebut. Oleh karena itu, kita harus membuat dahulu file sql, yang akan dijalankan oleh docker mysql ketika running diawal. - Membuat folder dump didalam rihlatul-app/umrohDB - Membuat file u8767111_rihlatul.sql didalam folder dump

root@debianMaster:~/rihlatul-app# mkdir -p umrohDB/dump
root@debianMaster:~/rihlatul-app# nano umrohDB/dump/u8767111_rihlatul.sql
isi file dump ada di discord

Membuat compose.yaml

root@debianMaster:~/rihlatul-app# nano compose.yaml

services:
  db:
    image: mysql:latest
    container_name: db
    ports:
      - 3306:3306
    volumes:
      - ./umrohDB/dump:/docker-entrypoint-initdb.d
      - ./umrohDB/dbdata:/var/lib/mysql
    environment:
      MYSQL_ROOT_PASSWORD: secret
  phpmyadmin:
    image: phpmyadmin/phpmyadmin
    container_name: pma
    links:
      - db
    environment:
      PMA_HOST: db
      PMA_PORT: 3306
      PMA_ARBITRARY: 1
    restart: always
    ports:
      - 8081:80

  be:
    build:
      context: BE-Kelompok-Umroh/
      dockerfile: Dockerfile
    env_file:
      - .envBE
    container_name: nest-docker-mysql
    ports:
      - '5002:5002'
    depends_on:
      - db
    volumes:
      - ./BE-Kelompok-Umroh/src:/app/src

  fe:
    build:
      context: FE-Kelompok-Umroh/
      dockerfile: Dockerfile
    env_file:
      - ./FE-Kelompok-Umroh/.envproduction
    container_name: umrah-fe
    ports:
      - '5555:5555'
    links:
      - be
    volumes:
      - /app/node_module

Menjalankan docker compose

 docker compose up -d --build

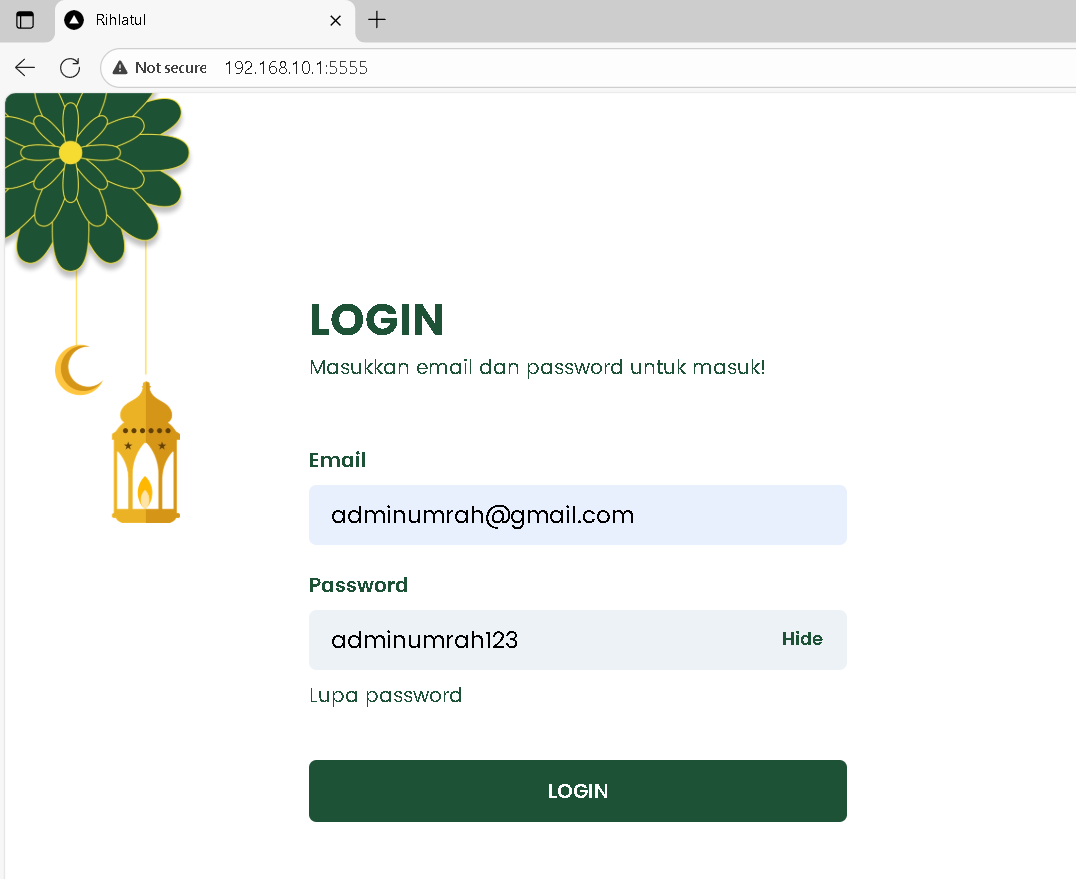

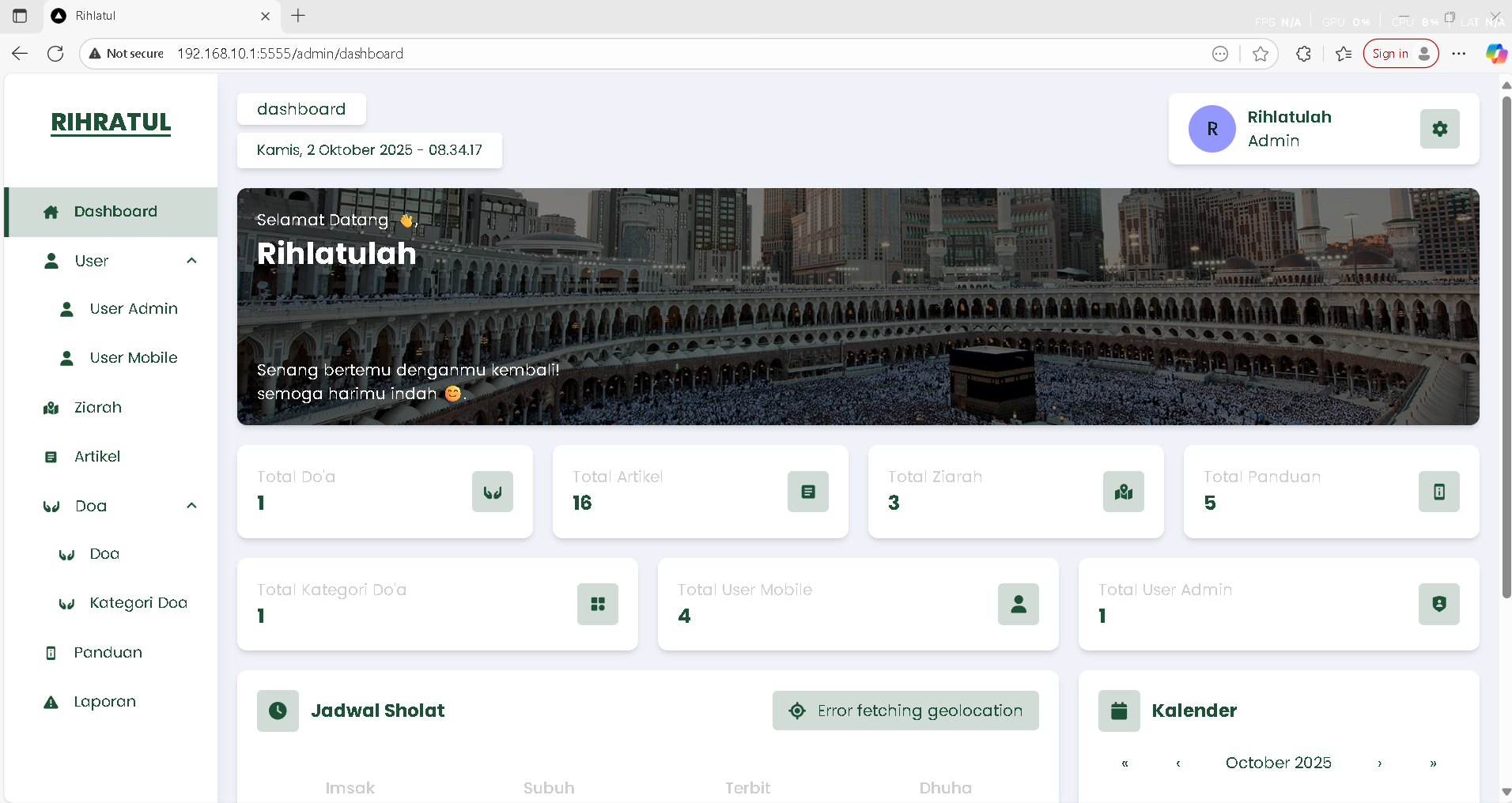

Tes di Browser

alt text
alt text
